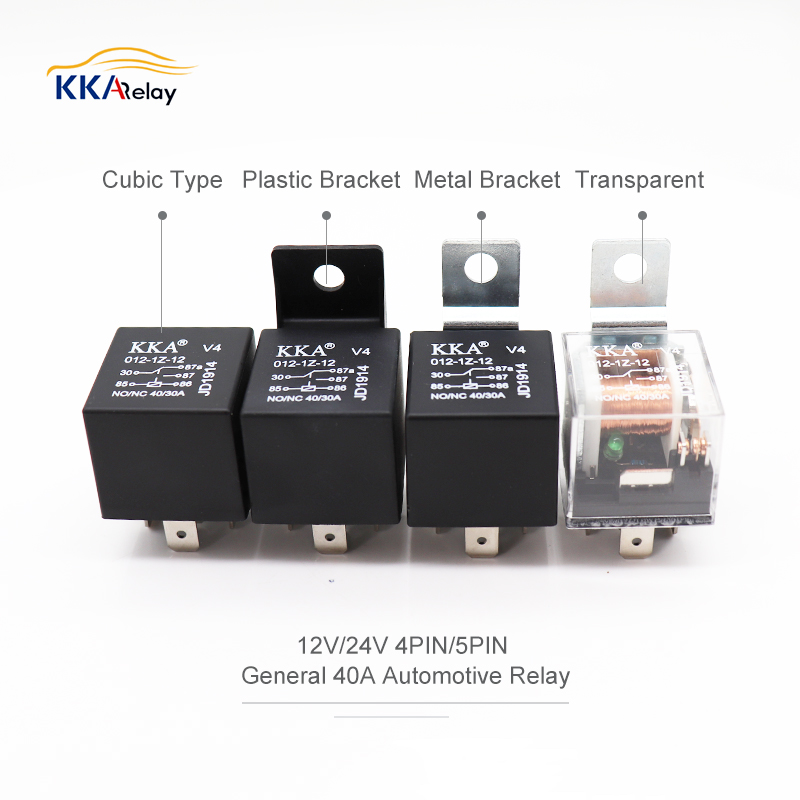

Features
- 40A switching capability
- Normal Open & Switching forms
- Socket terminal & PCB solder for option
- Terminals standard complies with ISO 7588 PART 1
English
English
Features
● Universally Substitute: Universal pins position design for substitute of most cubic 30A/40A auto relays
● High switching capability: Normally open 40A/14V DC and normally close 30A/14V DC.
● Premium quality: Durable relay and harness socket with 5 wires; Made by high-grade materials to ensure superior quality and long lifespan
● Male-female slot design: Unique male-female slot design, easy to connect the relay with harness socket, clean and neat after installation
● Easy wiring: The relay sockets come with different colors for loads/accessories, simple and convenient wiring
25 pieces/box, 500 pieces/carton

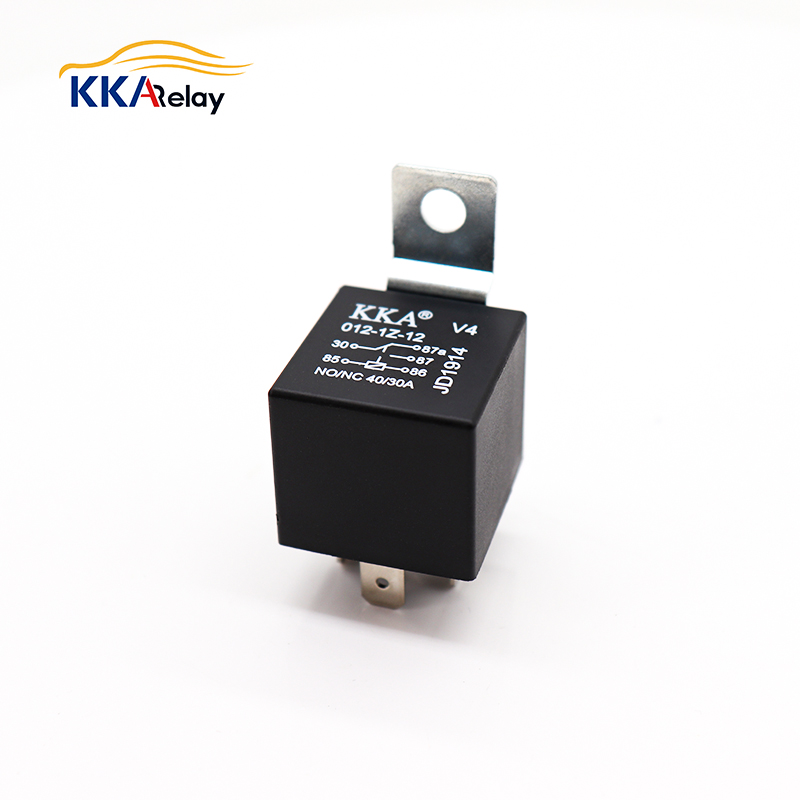

Carton Dimension of relay with metal bracket
33cm*31.5cm*31cm, 500pcs
19kg for 4pin relay
19.3kg for 5pin relay
Carton Dimension of relay without bracket
44.3cm*29.7cm*18.1cm, 500pcs
16.9kg for 4pin relay
17.4kg for 5pin relay
|
Contact Ratings |
|
|
Contact Form |
1A, 1B, 1C |
|
Contact Load Volt. |
13.5VDC/27VDC |
|
Contact Material |
AgSnO2 |
|
Electric Endurance |
1*105 |
|
Mechanical Endurance |
1*106 |
|
Coil Ratings |
|
|
Nominal Volt. |
12V/24V |
|
Pick-up Volt. |
≤8VDC/16VDC |
|
Release Volt. |
≥1.2VDC/2.4VDC |
|
Coil Res. |
80Ω/320Ω |
|
Coil Power |
1.8W |
|
Max. Coil Volt. (23℃) |
20.2VDC/40.5VDC |
|
Max. Coil Volt. (85℃) |
15.7VDC/31.5VDC |
