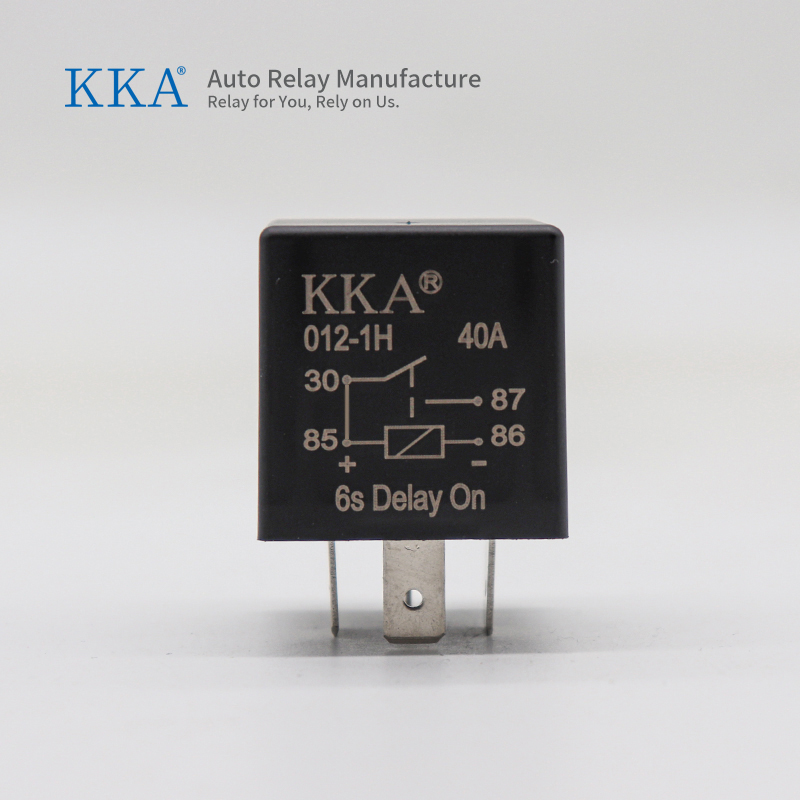

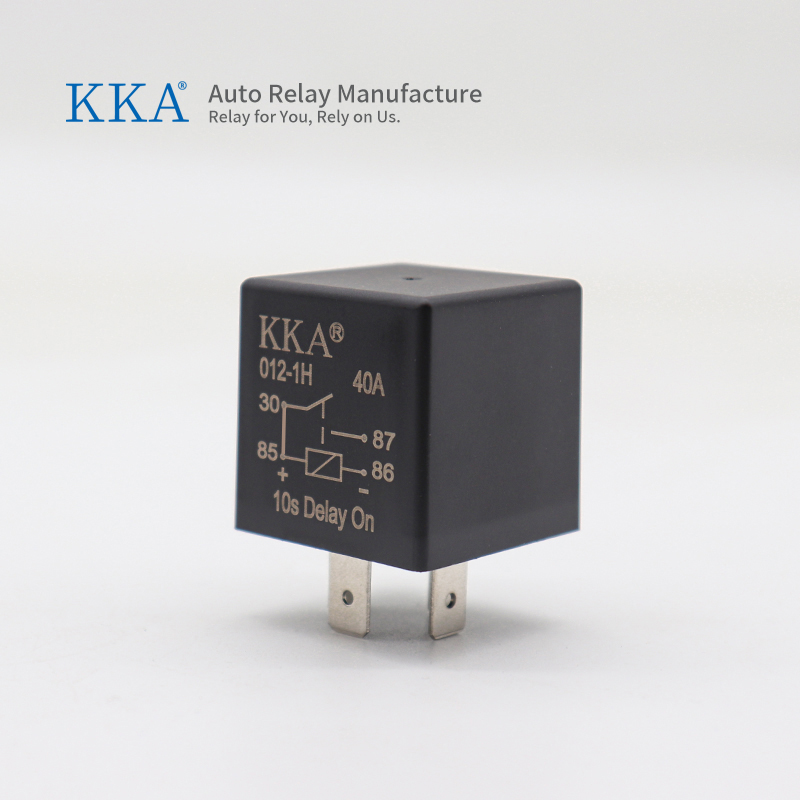

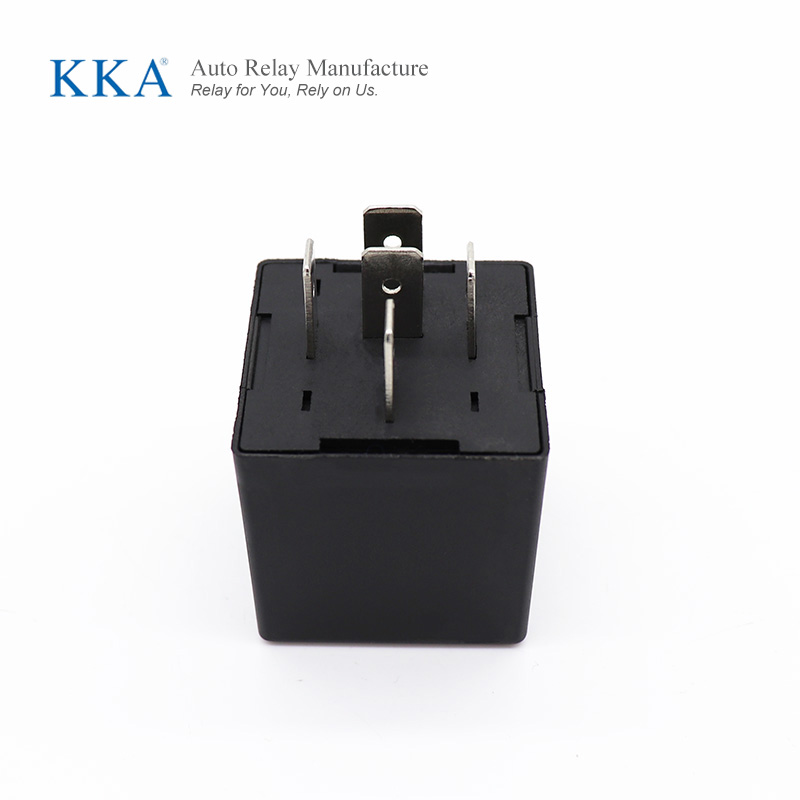

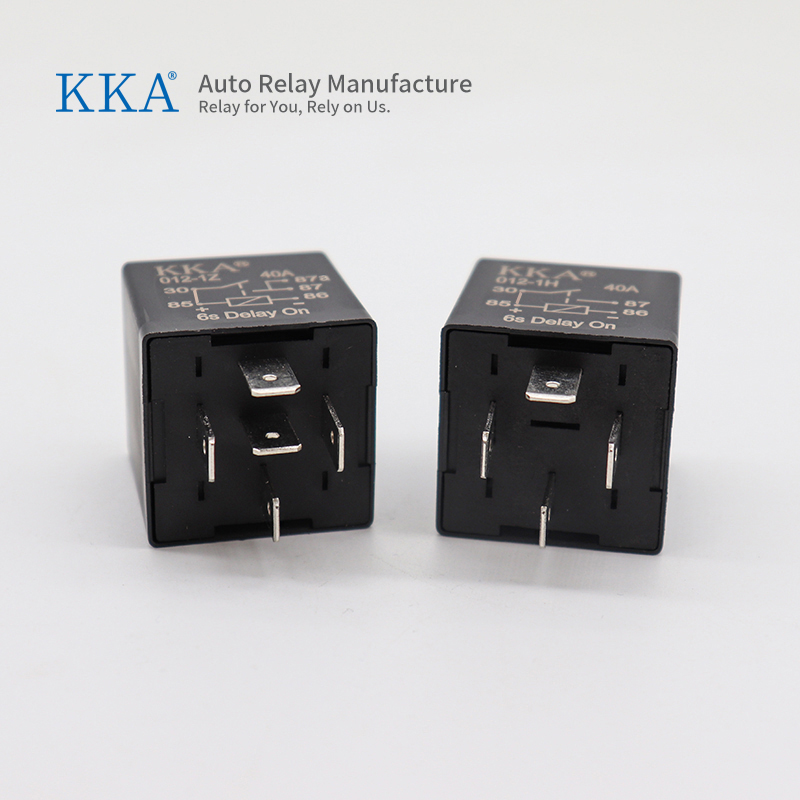

KKA-TDR4 Programmable 40A Time Delay Relay

40A Time Delay Relay
40A Time Delay Relay
40A Time Delay Relay
40A Time Delay Relay
40A Time Delay Relay
40A Time Delay Relay

Features

  • up to 40A switching load
  • 1A, 1B, 1C & Double outputs Forms
  • Delay on & Delay off time for customization
  • Terminals standard complies with ISO 7588 PART 1
Data Sheet

Product Description

Contact Ratings

Contact Form

1A, 1B, 1C

Contact Load Volt.

13.5VDC/27VDC

Contact Material

AgSnO2

Electric Endurance

1*105

Mechanical Endurance

1*106

Delay Time

Programmable Delay on/off



Coil Ratings

Nominal Volt.

12V/24V

Pick-up Volt.

≤8VDC/16VDC

Release Volt.

≥1.2VDC/2.4VDC

Coil Res.

80Ω/320Ω

Coil Power

1.8W

Max. Coil Volt. (23℃)

20.2VDC/40.5VDC

Max. Coil Volt. (85℃)

15.7VDC/31.5VDC
